RFID (RVC Series)
RFID
Selection
Selection
RFID (RVC Series)
->
Models

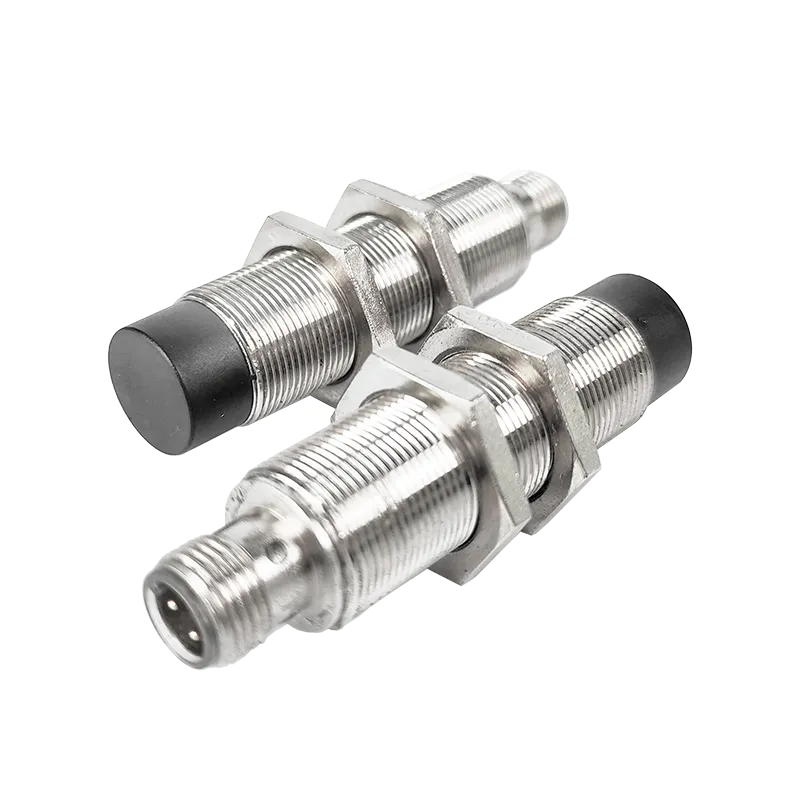

RVC-H18-F

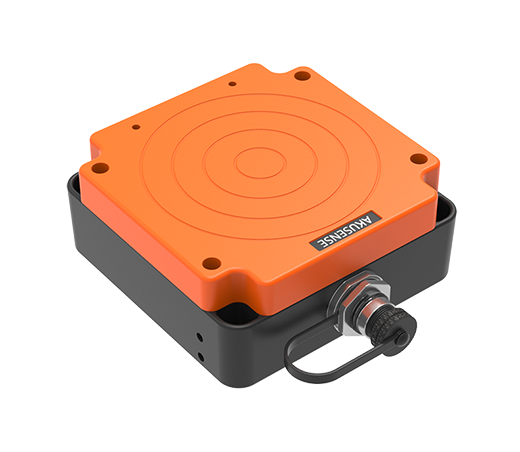

RVC-H610P-F
RVC-HQ30-F
RVC-H40-F
RVC-HB30-F

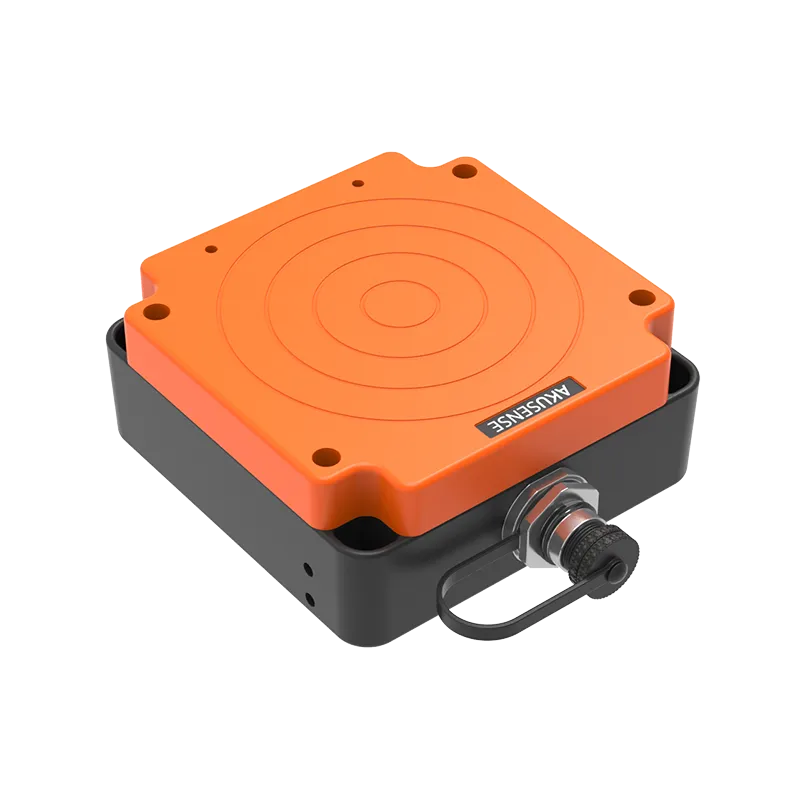

RVC-H610P
RF chip
ZC100
South Korea PR9200 dedicated RF chip
Air interface protocol
ISO 15693 / ISO 14443A
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Operat frequency
13.56MHz
902-928MHz or 865-868MHz
Read distance
0~35mm(Depend on label)
1ISO15693:110mm ISO14443A: 60mm ((Depend on label))
Q30：0~80mm(Depend on label）
0~35mm(Depend on label)
B30：0~60mm（Depend on label）
30~2000mm(Depend on the label)
Antenna
PCB Integrated antenna
Dual-feed ceramic antenna or PCB near-field antenna
Communication Interface
RS485
RJ45、RS232、RS485
RS485
RJ45、RS232、RS485
Communication Protocol
VUP Protocol
ModbusTCP, ModbusRTU, TCP/UDP protocols
VUP Protocol
ModbusTCP,ModbusRTU,TCP/UDP
Communication rate
Serial communication rate 9600~115200bp
Serial port communication rate 9600~115200bps, RJ45 communication rate 10/100 Mbps
Serial communication rate 9600~115200bp
Serial port communication rate 9600~115200bps
Serial communication rate 9600~115200bp
The serial port rate is 9600~115200bps, RJ45 is 10Mbps
Operate status
LED Indicator (Orange)
LED Indicator light, buzzer
LED Indicator (Orange)
LED Indicator, buzzer
Reliable firmware upgrade
Scalable upgrade mechanism
Application software interface
Provide API development kits and sample programs in C,C# and Java.
Provide API development kits and sample programs in C and Java
Size
30*60mm
95*95*40mm
30*65mm
40*40*45mm
30*65mm
95*95*40mm
Power Supply
Operate voltage DC 24V
Operate voltage DC 9~24V
Operate voltage DC24V
Operate voltage DC 24V
Operate voltage DC24V
Operate voltage DC 9~24V
Power Consumption
Maximum power consumption 2W
Maximum power consumption 3W, maximum starting current 1A
Maximum power consumption 2W
Communication harness
M12 female connector harness
Industrial connection tail line one to five.
M12 female connector harness
Weight
Approx. 60g (Whole set)
Approx. 1.1 kg (Whole set)
Approx. 120g (Whole set)
Approx. 60g (Whole set)
Approx. 120g (Whole set)
About 1.1 kg
Humidity
5%~95%,Non-condensing
Protection level
IEC IP67
Operate temperature
-40℃~+70℃
-40℃~+85℃
-40℃~+70℃
-40℃~+85℃ AJ3
Storage Temperature
Room temperature
Write distance
ISO15693:100mm ISO14443A: 50mm （Depend on label type）
0-1000mm(Related to reader parameter configuration, antenna gain, tag type)
Label RSSI
Support
Support
WiFi(option)
Support IEEE 802.11n/b/g
Support IEEE 802.11 n/b/g
Heat device (optional)
Low temperature automatic heating (-5℃) optional (determined according to the project site environment)
Low temperature automatic heating (-5℃) optional (determined according to the project site environment)
General-purpose input/output (GPIO)
2 input, 2 output
2 inputs, 2 outputs
Output power
13-27dBm±1dBm
Output power adjustment
1dBm unit increment(Setting via VANCH software)
Receive sensitivity
＜﹣70dBm
Inventory label peak speed
>50 times/sec
Support area
The U.S., Canada and other regions that comply with U.S. FCC Part 15 regulations Europe and other regions complying with ETSI EN
302 308 specifications China, India, Japan, South Korea, Malaysia, Taiwan
Connection tail line
Industrial connection tail line one to five.
