Home
Products
Network & Connection
Communicators for Measurement
Time savings due to less required cabling, cost savings due to fewer connection cables
·
Fast installation and easy device replacement thanks to plug-in connections
·
Compact housing allows for installation even where space is limited
Download
Filtering
By product line
By Model
Search filters
You can filter further under this category
Classification
Communicators for Measurement(
1
)
Storage Temperature
-40℃~85℃(
1
)
Installation Method
DIN rail installation(
1
)
Operating Voltage
24V DC(10~30V DC)(
1
)
Indicator light
PWR: Power indicator/green RUN: running indicator light/green ERR: Error indicator/red Sensor communication indicator light: red light (RTU communication abnormality) Ethernet port:(green) D-BUS: RTU Communication normal/green light Ethernet port(green): (
1
)
100M Ethernet port
10/100Base-T (X) RJ45, automatic flow control, full and half-duplex mode, MDI/MDI-X automatic detection(
1
)
Burning port
The software programming port uses 8-bit terminal blocks with a pitch of 2.0mm, occupying 2-5 positions from the left(
1
)
Console port
The CLI command management port uses 8-position terminal blocks with a spacing of 2.0mm, occupying 6-8 positions from the left(
1
)
RS-485 serial port
Supports 2 RS-485 serial ports, one of which is reserved, using 10-bit terminal blocks with a spacing of 2.0mm,and the serial port occupies 4 bits(
1
)
Reset button
Reset button(
1
)
Access terminal,noload power consumption at normal temperature
10-position terminal block with a pitch of 2.0mm, 2 positions for power supply,0.7w@10VDC 0.7w@20VDC 0.7w@30VDC(
1
)
Full-load power consumption at normal temperature
0.7w@10VDC 0.7w@20VDC 0.7w@30VDC(
1
)
High temperature full load power consumption
0.8w@10VDC 0.8w@20VDC 0.8w@30VDC(
1
)
Operating temperature
-40℃~75℃(
1
)
Working Humidity
5%~95%(No condensation)(
1
)

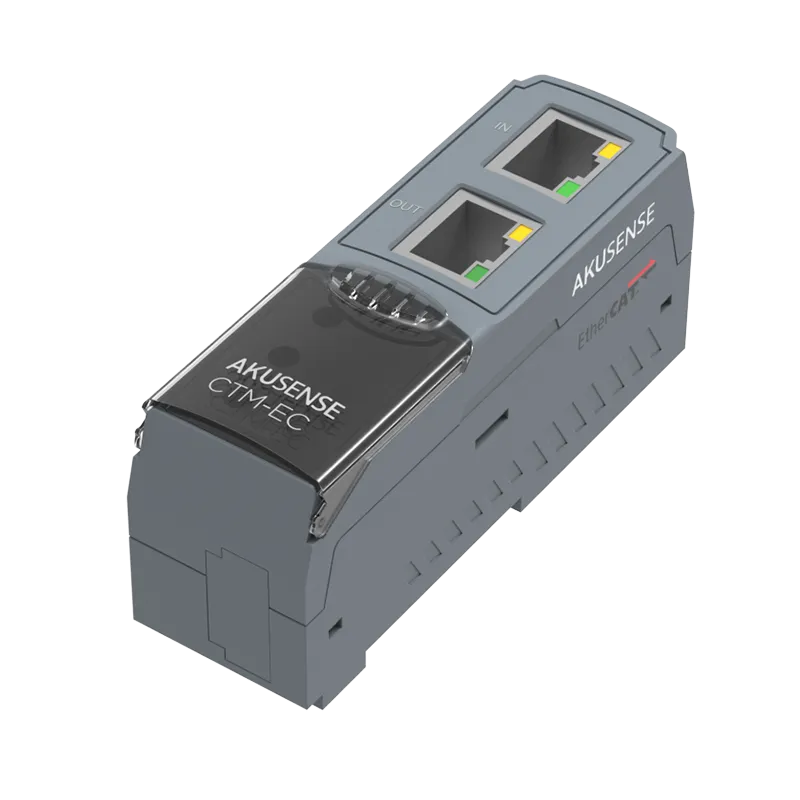

Communicator CTM01-EC
CTM01-EC
Download
Request a Quote
View Details
