Communicator
TXQ
Models

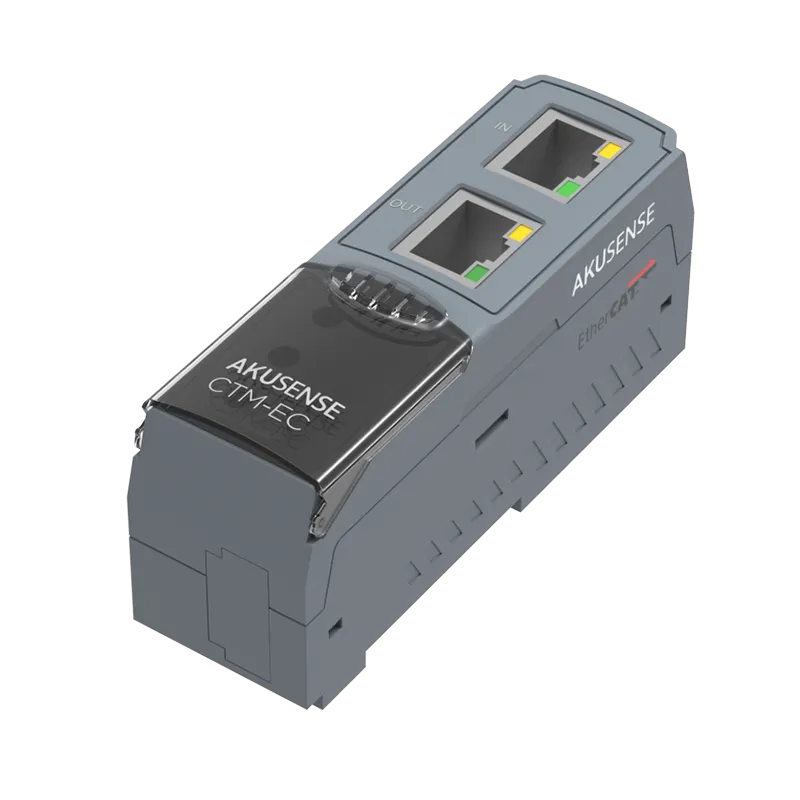

Communicator CTM01-EC
- Installation Method：DIN rail installation
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
| Model | CTM01-EC |
| Installation Method | DIN rail installation |
| Operating Voltage | 24V DC(10~30V DC) |
| Indicator light | PWR: Power indicator/green RUN: running indicator light/green ERR: Error indicator/red Sensor communication indicator light: red light (RTU communication abnormality) Ethernet port：(green) D-BUS: RTU Communication normal/green light Ethernet port(green): |
| 100M Ethernet port | 10/100Base-T (X) RJ45, automatic flow control, full and half-duplex mode, MDI/MDI-X automatic detection |
| Burning port | The software programming port uses 8-bit terminal blocks with a pitch of 2.0mm, occupying 2-5 positions from the left |
| Console port | The CLI command management port uses 8-position terminal blocks with a spacing of 2.0mm, occupying 6-8 positions from the left |
| RS-485 serial port | Supports 2 RS-485 serial ports, one of which is reserved, using 10-bit terminal blocks with a spacing of 2.0mm,and the serial port occupies 4 bits |
| Reset button | Reset button |
| Access terminal,noload power consumption at normal temperature | 10-position terminal block with a pitch of 2.0mm, 2 positions for power supply，0.7w@10VDC 0.7w@20VDC 0.7w@30VDC |
| Full-load power consumption at normal temperature | 0.7w@10VDC 0.7w@20VDC 0.7w@30VDC |
| High temperature full load power consumption | 0.8w@10VDC 0.8w@20VDC 0.8w@30VDC |
| Operating temperature | -40℃~75℃ |
| Storage Temperature | -40℃~85℃ |
| Working Humidity | 5%~95%（No condensation） |
