Controller
KZQ
Models

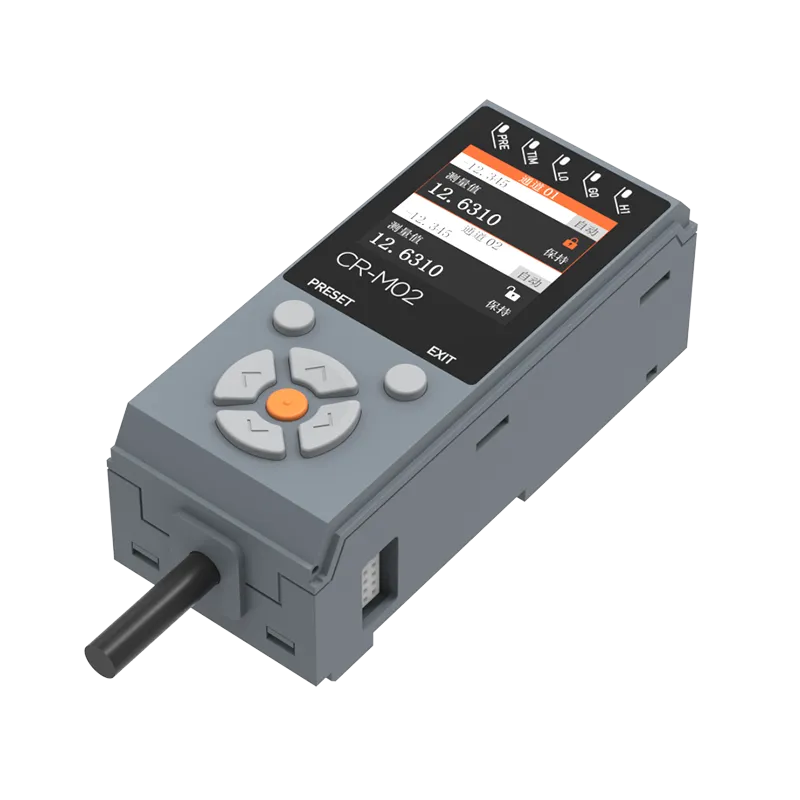

Controller CR-M02
- Insulation Resistance：The resistance of all connecting terminals and shells is above 20MΩ
- Installation Method：DIN rail installation
- Analog Output：Analog output current 4~20mA, voltage 0~5V can be switched
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
| Model | CR-M02 |
| Installation Method | DIN rail installation |
| Operating Voltage | 24VDC±10% |
| Current consumption of a single controller | Under 100mA(When connecting the sensor) |
| Number of connected sensors | Two pairs of sensors |
| The communication with sensors | RS485 |
| Number of controllers connected in parallel | Up to 16 controllers can be connected |
| Display | 240*240TFT display |
| Indicator light | Output 1~3 and function indicator light red |
| Analog Output | Analog output current 4~20mA, voltage 0~5V can be switched |
| Switching output | 3-channel output, NO, NC, PO, PC can be switched |
| External input | 3-channel input, NPN and PNP input optional |
| Display resolution | 1μm |
| Display range | -99.999mm~99.999mm |
| Protective structure | IP40 |
| Operating temperature | 10℃~+50℃ |
| Working Humidity | 35%RH~85%RH |
| Insulation Resistance | The resistance of all connecting terminals and shells is above 20MΩ |
| Withstand Voltage | All connection terminals and housing withstand voltage AC 1000V |
| Vibration Resistance | Frequency 10~55HZ, 1.5m double amplitude, two hours each in X, Y and Y directions |
| Shock proof | 98m/s 2 (about 10G) 5 times each in X, Y, and Z directions |
