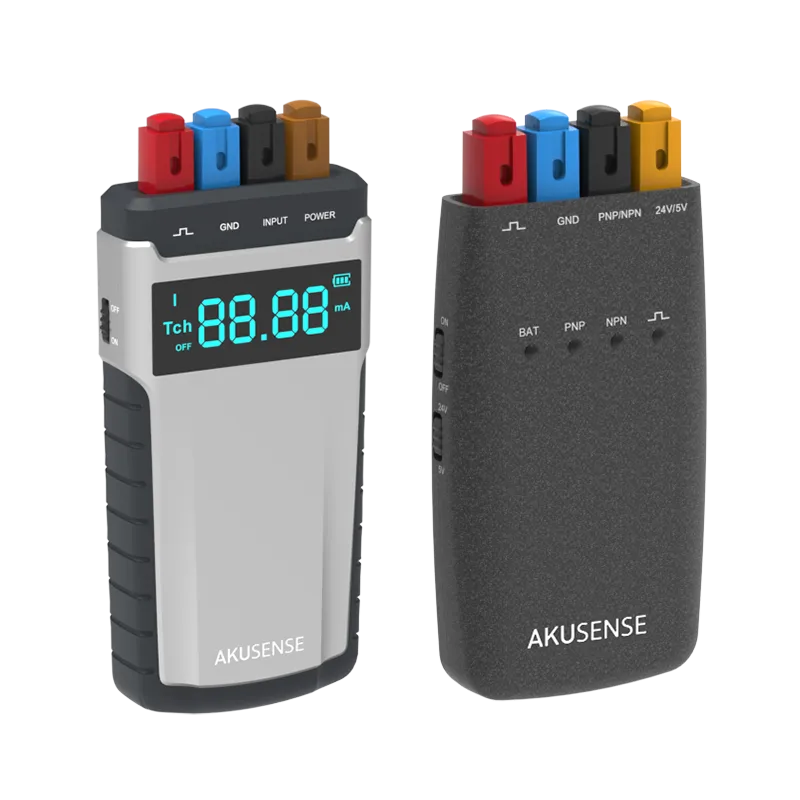

Analog Test Box
CSH
Models
Analog Test Box WD-1
- Size：
- Measuring Range：Voltage mode: 0~10V; Current mode: 0~20mA
Collection
Request Test
Specifications
Dimensions
Circuit diagram
Accessories
Applications
Customs data
| Model | WD-1 |
| Detection Type | NPN/PNP, automatic identification |
| Battery Capacity | 4000mAH |
| Charging Time | 9h |
| Output Voltage | 19V~24V, brown output end; 4.8V~5V, USB output |
| Output Current | ≤160mA, brown output; ≤500mA, USB output |
| ProtectiOn Circuit | Power overcurrent protection |
| Operating temperature | - 10 ~ 45 ℃ |
| Other Features | Sleep function, mute function, flashlight |
| Dimensions | 67.7 x26.6 x149.8 mm |
| Weight | 200g |
| Measuring Range | Voltage mode: 0~10V; Current mode: 0~20mA |
| Measurement Accuracy | Voltage mode: ≤0.04V (full range); Current mode: ≤0.04mA (full range) |
| Scan period | Digital mode: 22ms; Current mode: 140ms; Voltage mode: 140ms |
