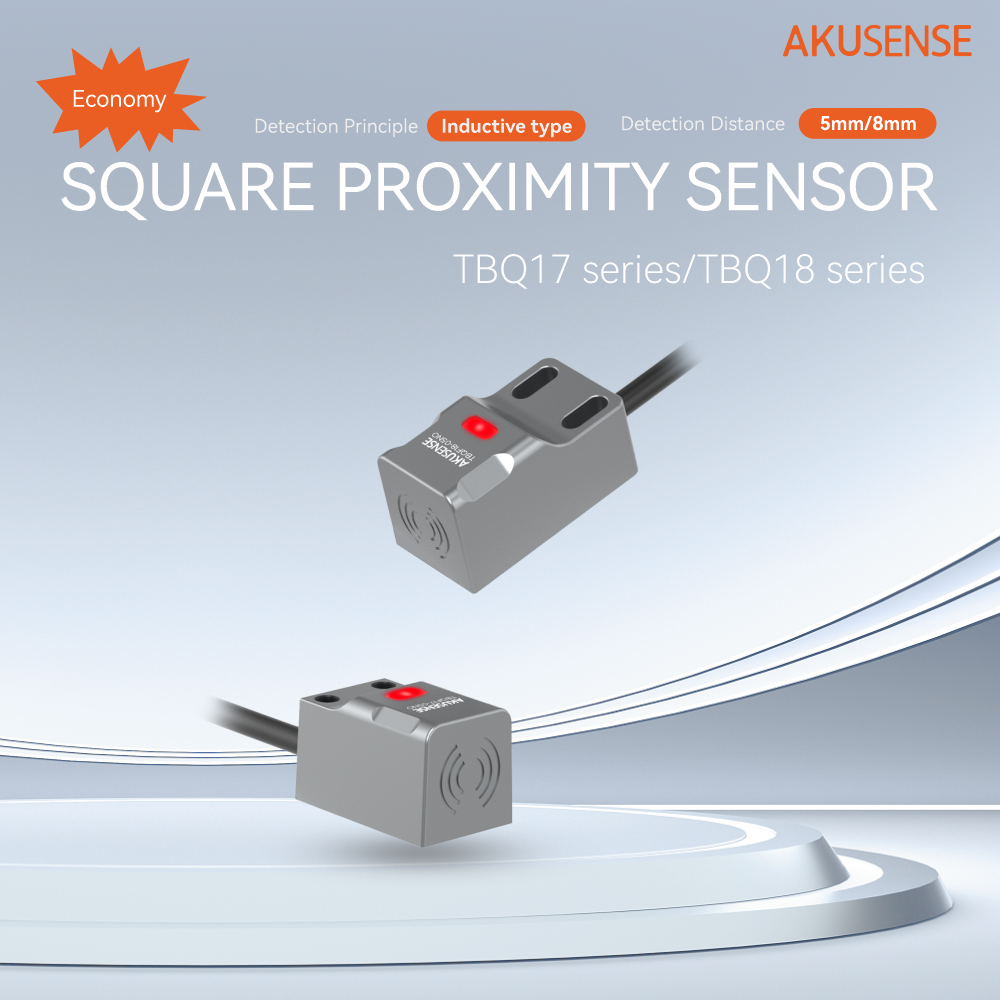

▫️ Sensing Principle: Inductive
▫️ Detection Range: 5mm / 8mm
▫️ Switching Frequency: 300Hz (≈3.3ms) / 400Hz (≈2.5ms)

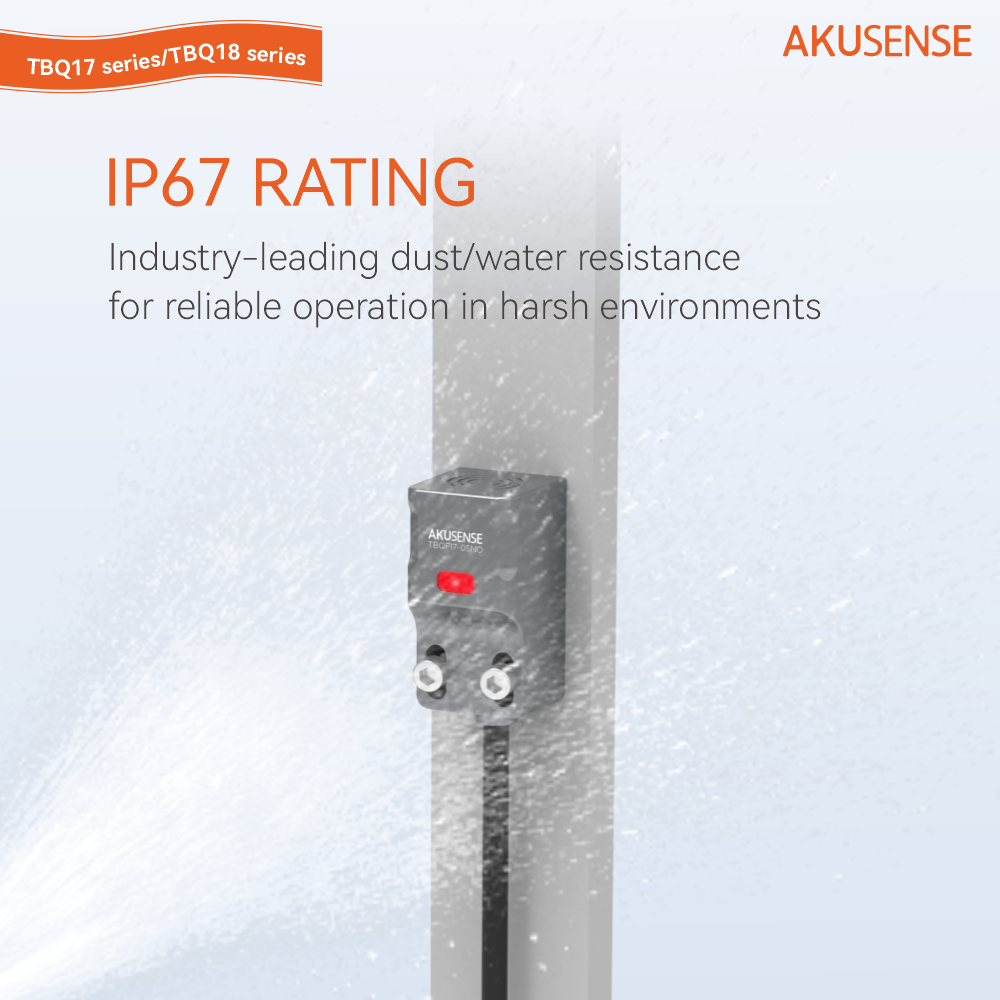

▫️ Ingress Protection: IP67 (Submersion-proof up to 1m)
▫️ Switch Logic: NO/NC (Normally Open/Closed)
▫️ Output Type: NPN / PNP Sourcing
| Basic Features | Working Principle | Inductive detection principle | |||
| Housing | Q17 | Q18 | |||
| Installation | Flush | Non-flush | Flush | Non-flush | |
| Rated sensing distance(mm) | 5.0 | 8.0 | 5.0 | 8.0 | |
| Assured sensing distance(mm) | 4.0 | 6.4 | 4.0 | 6.4 | |
| Sensing surface | ABS | ||||
| Standard sensing object(ST37) | 17x17x1 | 24x24x1 | 18x18x1 | 24x24x1 | |
| Indicator | Red LED | ||||
| Electrical Data | Operation model | NO/NC available by model | |||
| Output model | NPN/PNP available by model | ||||
| Response frequency | 400Hz | 300Hz | 400Hz | 300Hz | |
| Repeatability | ≤1% | ||||
| Hysteresis | ≤15% | ||||
| Operating Voltage | 10~30V ±10% | ||||
| No load current | ≤10mA | ||||
| Voltage drop | <1.5V | ||||
| Load current | ≤150mA | ||||
| Leakage Current | ≤0.01mA | ||||
| Insulation resistance | ≥50MΩ/500V DC | ||||
| Dielectric strength | 1000V AC at 50/60Hz for 1 min | ||||
| Vibration resistance | 10~55Hz, 1.5mm double amplitude for 2hours each in X/Y/Z directions | ||||
| Protection Circuit | Reverse Polarity Protection/Surge protection/Short-circuit Protection | ||||
| Environmental Conditions | Operating Temperature | -25℃~+75℃ (No Freezing) | |||
| Operating Humidity | 35%~85% RH (No Condensation) | ||||
| Enclosure rating | IP67 | ||||
| Mechanical Data | Connection | 2m/3-wire Cable | |||
| Dimensions | 27.0x17.0x17.0 | 34.0x18.0x18.0 | |||
| Housing material | ABS | ||||
| Weight | 54 | 56 | |||
| Accessories | - | ||||
▶ Precision Engineered
Dedicated IC design ensures ±0.5% detection consistency
▶ Installation Flexibility

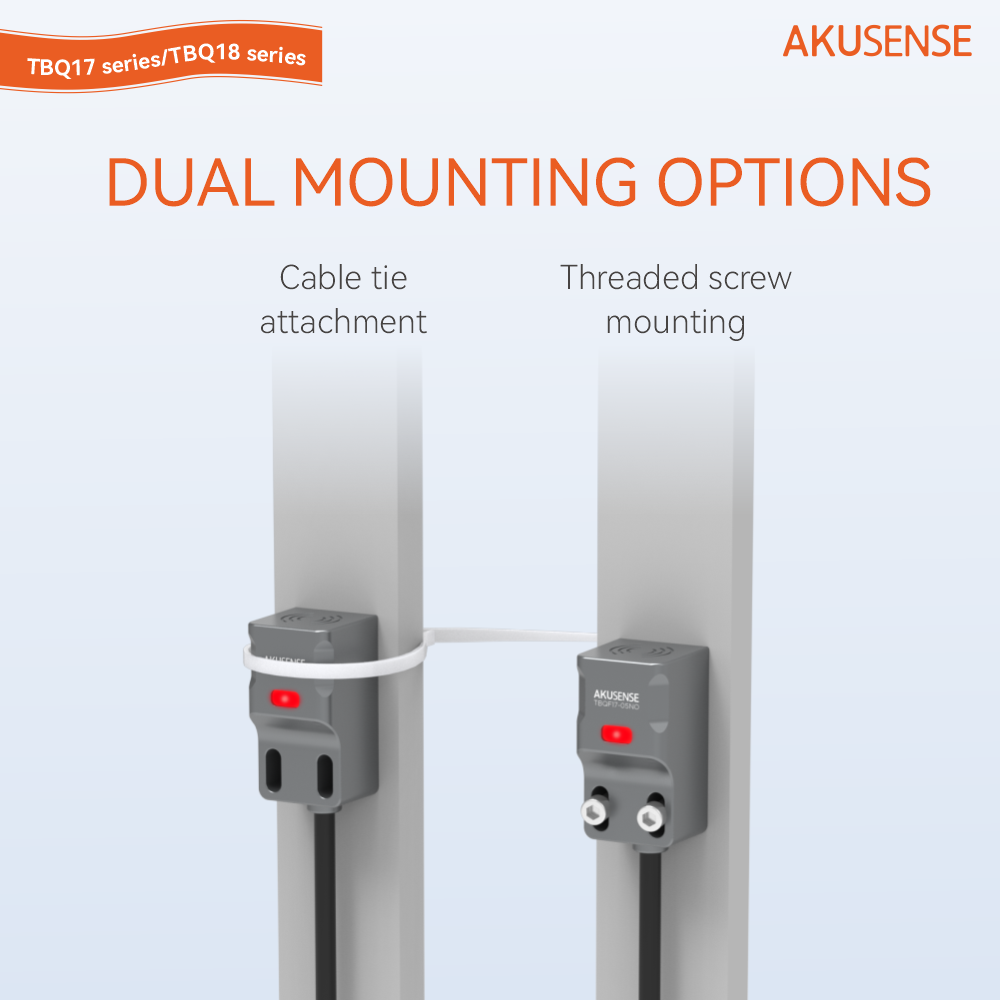

Tool-free cable-tie mounting or vibration-resistant screw installation

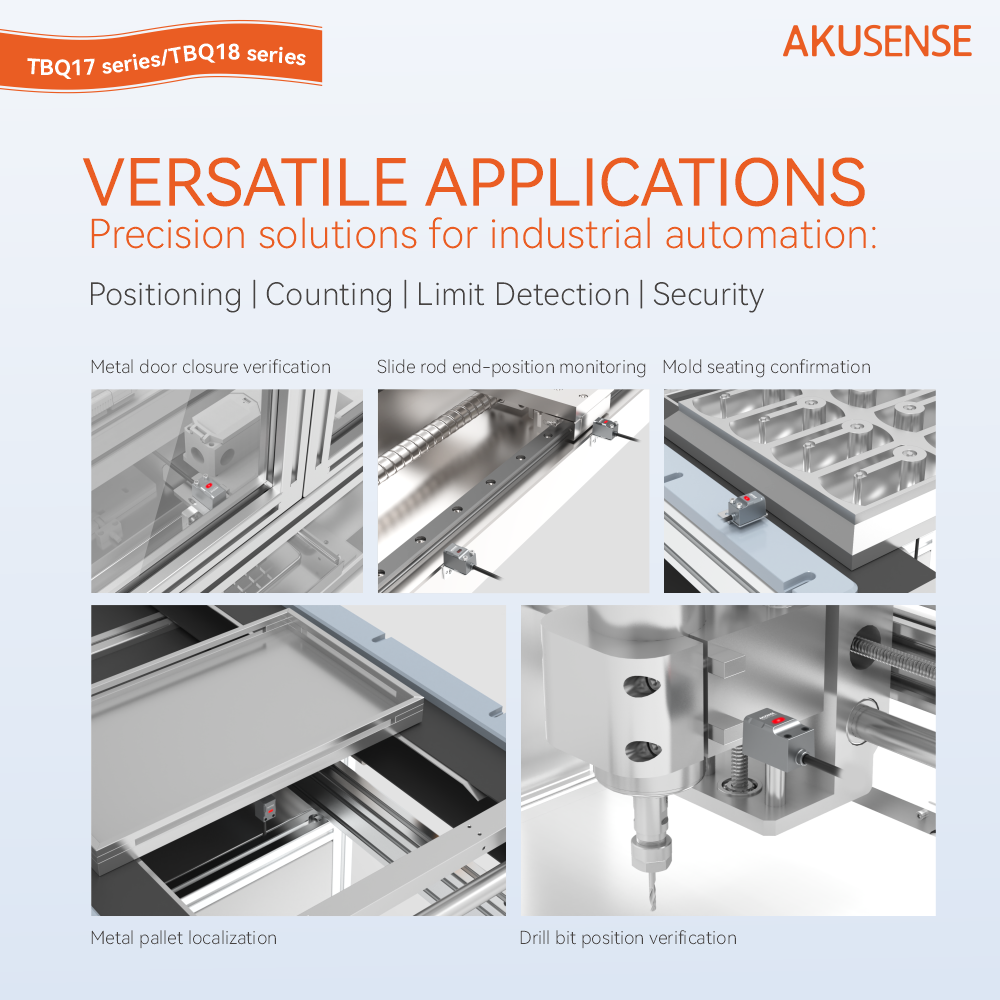

| Application | Function | Industry Impact |
| Safety Monitoring | Metal door closure verification | Prevents operational hazards |
| Motion Control | Slide rod end-position detection | Eliminates over-travel damage |
| Mold Positioning | Metal mold seating confirmation | Ensures injection molding precision |
| Logistics Sorting | Pallet position verification | Optimizes warehouse throughput |
| Machining | Drill bit depth monitoring | Prevents tool breakage |
Where cost-efficiency meets industrial-grade reliability:
✓ 30% lower TCO vs traditional sensors
✓ 5X faster ROI with plug-and-play deployment
✓ ISO 9001-certified manufacturing
Akusense Technology Co., Ltd.
